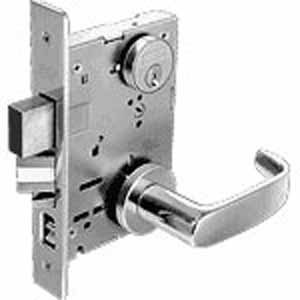

Mortise locks

8200-SARGENT

SARGENT Mortise Locks are designed with high quality components to provide high security, performance and durability. They are well suited for commercial facilities with exposed perimeter doors, such as warehouses, factories and malls. SARGENT Mortise Locks are the result of over a century of experience in manufacturing hardware.

Sargent`s 8200 Mortise locks are designed with high quality components to provide high security, performance, and durability and are ANSI A156.13 Operational Grade 1 Series 1000 and Security Grade 1 compliant with all standard trims.

Ideally suited for:
· Hospitals
· Schools / Universities
· Factories
· Office Buildings

Features and Benefits:

Strength

Exceeds ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims
12 gauge (.109) steel case and cap
1/8” (.125) cold-rolled steel inside front holds lock securely in door
Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life
¾” stainless steel latch throw. One piece construction to offer 1” total bearing surface against the strike
Stainless steel hubs available for institutional applications
1” throw stainless steel deadbolt with 2 hardened steel rollers
Durability

Exceeds 2 X the ANSI/BHMA A156.13 Grade 1 standard for cycle testing!


Flexibility

Fast and easy installation. Lock is easily re-handed without removing parts or opening the lock case
Aesthetic design. Many escutcheon and lever styles available to match a wide range of styles
11 Standard architectural grade finishes
32 Standard functions, 4 electrical functions and 4 keypad functions. The most in the industry for a broad range of applications!
Versatile. Offered for door thicknesses ranging from 1 3/8” to 6”
Security. Available with vandalism deterrent trim and/ or secure fastener options for high abuse conditions
UL Listed (10C and UBC 7-2, 1997) for use on fire doors up to 4'x10' and double door applications
Available with push/pull trim. Perfect for hospital applications
SARGENT uses engineered solutions and flexible manufacturing processes to accommodate special applications

Innovation

Easy operation. Only 30? of lever rotation required retracting latchbolt
Lever springs contained inside of the lock case for easier installation
Unique spring design. Provides longer lock life, no lever sag and simple installation
SARGENT's revolutionary SARGuard™ available. This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. EPA and NSF approved and FDA listed
Broad offering of electro-mechanical configurations offer higher security for the most demanding access/egress control applications

Security

Torx® and spanner screws
Classroom and hospital security functions available
Multiple security trim options available: Freewheeling, security escutcheon and anti-vandal pull trim (patent pending)
Security key systems available (V-10, Signature, Keso, XC).
